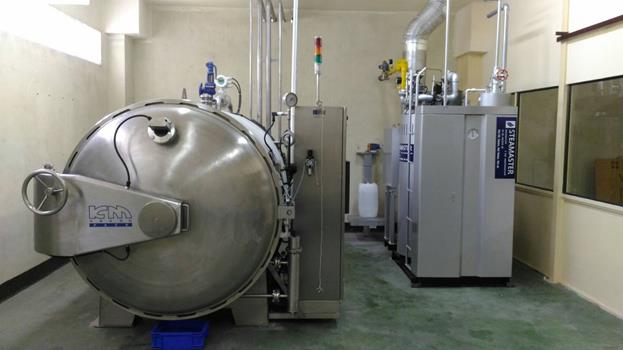

Boiler S Type Smart and Friendly Design High Efficiency 97%

Designed: According to ASME DIN, JIS standard.

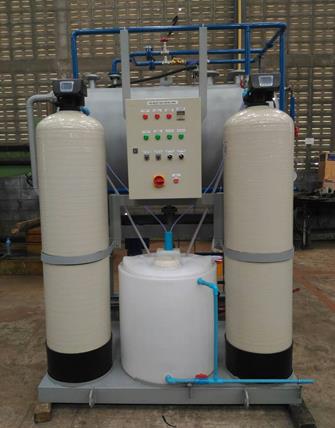

Automatic water Softener

Surface Blow down (TDS Control)

Gas solenoid valve according to the EN161, Class A, Group2

Burner control: Siemens 3 position (High – low -off) for 1000kg/h and above

PLC: Siemens




Technical data
Fuel: LPG, natural gas or oil

Power supply   AC380V 3 50Hz

Size of boiler     Type S

500

1000

1600

2000

2500

       Steam output               kg/h

500

1,000

1600

2000

2,500



     Heating capacity        Kcal/h

                                                BHP

270,000

30

539,000

60

862,400

100

1,080,000

130

1,350,000

150

                   Control

ON - OFF

High – Low – Off

               Fuel LPG               m3/h

                                               Kg/h

13.10

26.40

24.80

50.10

39.7

80.22

49.70

100.3

62.13

125.40

               Gas inlet

DN 25

DN 40

            Steam outlet

DN 32

DN 50

DN 65

DN 80

                  Diesel                    L/h

35.00

68.30

109.22

136.50

170.70

           Electricity                    kw

1.55

3.90

8.28

9.80

11.10

     Transport weight appr.    Kg

750

1550

1720

1800

2400

       Safety Valve   ASME

          Boiler efficiency

97% (with Economizer)

1.Above specifications are based on the following standard values

       Low heating value

            Propane: 93.7 MJ/m3 (N) {22,380kcal/m3(N)}, 46.4MJ/kg {11,080 kcal/kg}

            Butane:   118.9MJ/m3(N) {28,400kcal/m3(N)}, 45.7MJ/kg {10,920kcal/kg}

            Light oil, Diesel oil, Kerosene: 34.8MJ/L (8,310 kcal/L)

2.Please always supply with gas at the stable pressure.

3.The following allowance is considered as unavoidable measurement error:
Measurement error boiler efficiency +- 1%
Measurement error in combustion (input) +- 3.5%

OPTION

feed water pump temperature max. 120C

Sampling cooler

    Cooling the blow down water

    Material all stainless steel.

    Conductivity/TDS Tester

    PH Tester

    Hardness test kit
